FASTER PART REMOVAL WITH ECONOMICAL LINEAR ROBOT

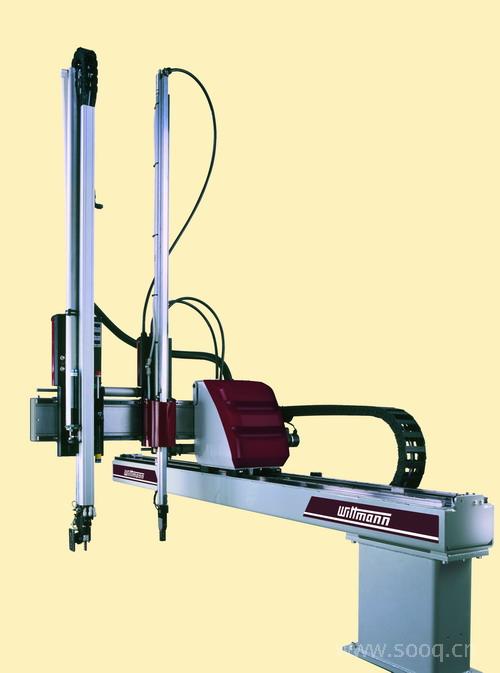

WITTMANN在2004年推出全新機械手W710系列。這款機型將秉承W720 款機械手特別在于簡單取件和二次操作上的成功設計。W710 型機械手Y軸和X軸最大可分別提供1200mm和2000mm。相比較原先的W720 系列機械手W710 機械手推出更具吸引的價格并提供所有的選項和擴充可能。W710 機械手可供最大5公斤（合11磅）的負荷，配有一個標準固定的轉動軸。像所有WITTMANN適合小型噸位的機械手，此類機械手使得機臂碰撞混料設備，或?qū)τ诙?，小機臺配合安裝較高上料設備的碰撞機會降之最低。(WITTMANN will display at K 2004 for the first time the completely newly developed electric-pneumatic linear robot Model W710. This unit will follow the successful model W720 robot that was specifically designed for simpler part removal and secondary operations. The robot models W710 are available with vertical strokes up to 1200mm and horizontal strokes up to 2000mm. Compared to the preceding model W720 robot, the W710 offers a very attractive price and at the same time provides all options and expansion possibilities. The W710 robot offers a payload of 5 kg (11 lbs) and is equipped with a fixed removal axis. Like all WITTMANN robots for the small tonnage range of presses, this minimizes the chance of possible collisions with blenders and tall material loaders on molding machines with small tonnage and shorter injection units. )

Using the already proven C61 control system - which is used unchanged from the preceding robot model - any position on the horizontal axis can be taught and programmed. This allows simple palletizing routines, as well as the teaching of separate sprue cutting sequences, quality control routines and positions for the placement of reject parts. Following the philosophy of WITTMANN to equip all robots with a freely programmable control system, the C61 allows the programming and execution of arbitrary program sequences.

使用改進后的C61 控制系統，（此操控系統在先前型號的機械手中從未改變），任何橫軸上的位置都可被編程或示教定位。這樣就允許進行簡單的堆垛程序，例如示教切斷料桿分離的程式，質量控制路線及不良品的定點置放。隨著WITTMANN 的軟件體系發展，可配備所有的機械手以自由控制的編程系統，C61 允許編制并完成任意的程式。

In order to satisfy the requirements of today’s molding shops for shortest possible part removal times and successfully compete as the lowest cost producer, the vertical axis of the W710 linear robot is optimized for minimal vibration. This allows not only for a fast and delay-free removal of molded parts but also minimized wear of the mechanical components of the axis. The horizontal axis of the robot is equipped with a dynamic, frequency controlled motor and all components of the control system are directly mounted on the robot structure. This avoids the necessity for a separate control cabinet next to the molding machine.

為滿足當今注塑車間不斷縮短取出周期，以成功抗衡降低成本的需要，W710 機械手的垂直臂獨具優化的抗抖動設計。這一點不僅將無延時的取出成為可能而且使得軸的磨損程度降至最低。橫軸配備了變頻控制的動力馬達，所有控制系統部件都裝在機械手上。這樣的結構避免了電控柜緊靠注塑機所帶來的麻煩。

Wittmann is a global manufacturer offering plastic processors worldwide a complete range of innovative automation technology and auxiliary equipment - from autonomous work cells to centrally managed and controlled system solutions. Products include sprue pickers, robots, end-of-arm-tooling (EOAT), degators, and complete automation work cells; fully integrated materials handling systems with dryers, blenders, vacuum loading systems, rail car unloaders, silos, central filters, vacuum receivers, tilt tables and surge hoppers. Wittmann also offers beside-the-press and central granulators and water products including flow and mold temperature controllers, portable and central chillers.
Wittmann是全球?qū)I(yè)提供注塑自動化及輔助設備的供應商，廣泛的產品范圍能夠為客戶提供創新的自動化技術和輔助設備解決方案，產品包括斜臂式機械手、機械手、夾具、全自動工作步驟，全急成型物料處理系統包括了中央干燥機、混料機、真空吸料系統、中央過濾器、粉碎機、水流控制器、模溫機、可移動式以及中央冷卻機。

With the entire line of peripheral equipment, Wittmann can cover all the needs of plastic processors. The solutions range from autonomous work cells to centrally managed and controlled system solutions. Their worldwide presence through subsidiaries allows Wittmann to offer superb local service and sales support.

隨著Wittmann的不斷更新和完善，Wittmann已經擁有全部輔助配套設備，能夠為塑料生產的每個環節提供配套產品。同時，還能為客戶提供全自動化的工作流程和中央管理控制系統的解決方案。全球各地的子公司更能為您提供當?shù)氐姆?wù)和銷售支持。

2004年Wittmann 在中國成立了“威猛”品牌，威猛秉承了Wittmann不斷創新的精神，一如既往地為客戶提供專業的技術服務，讓威猛產品發揮最優的工作性能。

2005年6月Wittmann 威猛在中國興建的新工廠開始投產。Wittmann 威猛中國購買了歐洲最先進的加工設備用于產品的精加工，以保證威猛公司全球一致的高質量、高水平。
